Features Introduced

Based on the technology of SM series Servo precision Double-helix High Speed Sheet Cutter Machine,SMC series equipped with more intelligent function and better technological innovation.

  1. Auto positioning slitting system.
  2. Paper pre-press device.
  3. 3 times delivery device(no impression line).
  4. Collecting board pneumatic lifting device.

Partial Introduction

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1100/1500/1700
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330 m/min
Max. cutting speed540 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight21000/23000/26000kgs
Full-load power75/88/88kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450125275
500160315
600210350
650250380
700290410
750330440
800330410
900330365
1000330330
1100310280
1200300250
1300300230
1400300210
1500300195
1600300188
1650300185

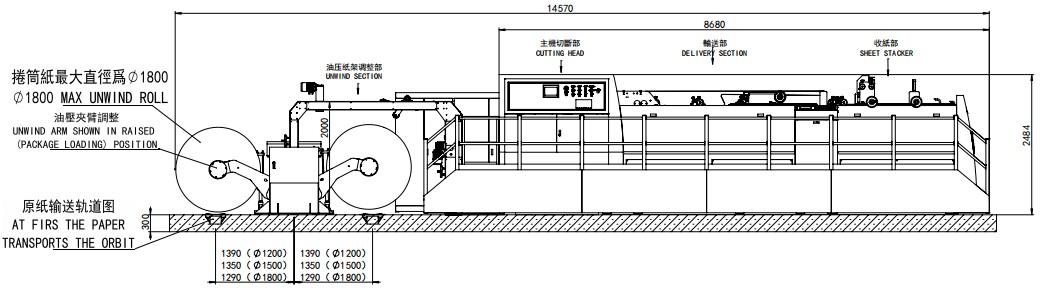

Drawing

]]> SMC 1900 http://www.76093.cn/en/?p=983 Wed, 07 Oct 2020 20:00:56 +0000 http://www.76093.cn/?p=983

Features Introduced

Based on the technology of SM series Servo precision Double-helix High Speed Sheet Cutter Machine,SMC series equipped with more intelligent function and better technological innovation.

  1. Auto positioning slitting system.
  2. Paper pre-press device.
  3. 3 times delivery device(no impression line).
  4. Collecting board pneumatic lifting device.

Partial Introduction

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1900
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed300 m/min
Max. cutting speed385 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1900(75”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight28000kgs
Full-load power106kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450100210
500110220
600155260
700230320
750290385
800300380
900300345
1000300300
1100290265
1200280235
1300260210
1400260190
1500260175
1600250160
1650250155

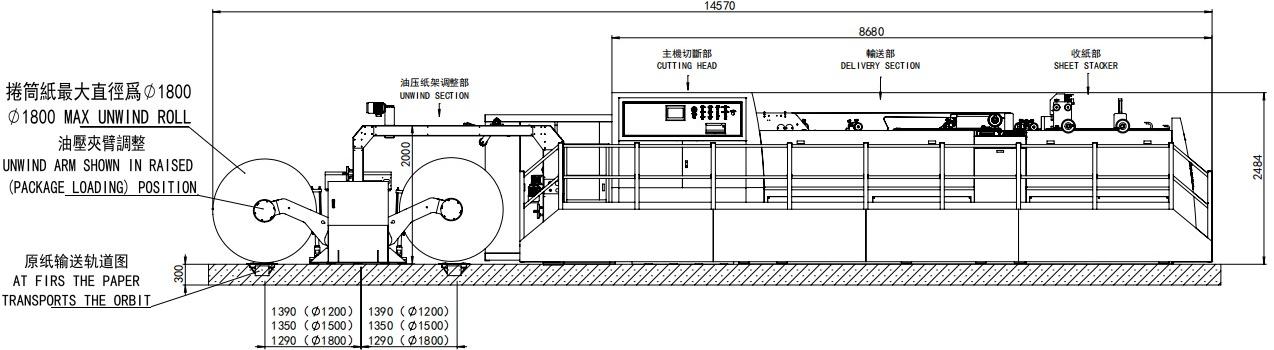

Drawing

]]> SMC-1100H/1500H/1700H http://www.76093.cn/en/?p=12362 Thu, 10 Jul 2025 01:23:11 +0000 http://www.76093.cn/en/?p=12362

Features Introduced

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Partial Introduction

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1100H/1500H/1700H
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330 m/min
Max. cutting speed540 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight23000/25000/28000kgs
Full-load power78/91/91kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450125275
500160315
600210350
650250380
700290410
750330440
800330410
900330365
1000330330
1100310280
1200300250
1300300230
1400300210
1500300195
1600300188
1650300185

Drawing

]]> SMC-1900H http://www.76093.cn/en/?p=12371 Thu, 10 Jul 2025 01:27:35 +0000 http://www.76093.cn/en/?p=12371

Features Introduced

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Partial Introduction

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1900H
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed300 m/min
Max. cutting speed385 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1900(75”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight30000kgs
Full-load power109kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450100210
500110220
600155260
700230320
750290385
800300380
900300345
1000300300
1100290265
1200280235
1300260210
1400260190
1500260175
1600250160
1650250155

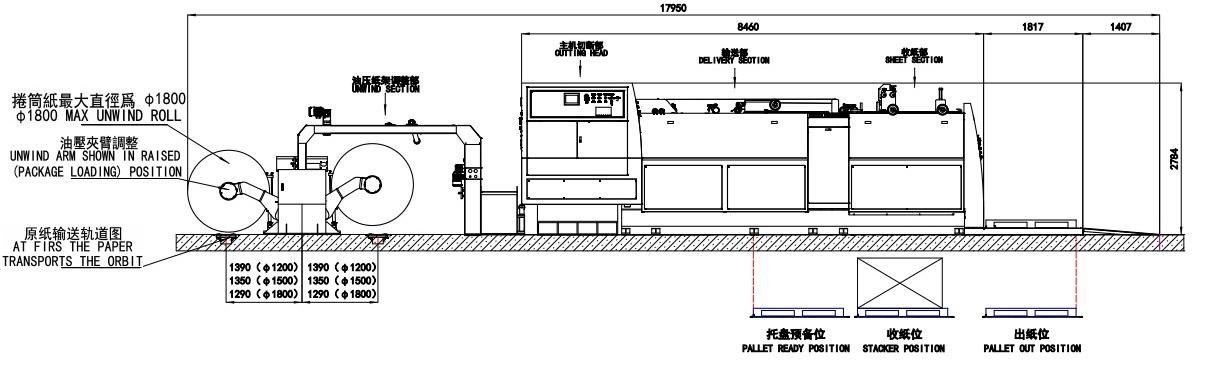

Drawing

]]> SMC 1100ZH/1500ZH/1700ZH http://www.76093.cn/en/?p=5651 Sat, 11 Sep 2021 01:54:15 +0000 http://www.76093.cn/en/?p=5651

Features Introduced

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic splicer and pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Partial Introduction

Auto splicer

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1100ZH/1500ZH/1700ZH
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330 m/min
Max. cutting speed540 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight25000/27000/30000kgs
Full-load power81/94/94kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450125275
500160315
600210350
650250380
700290410
750330440
800330410
900330365
1000330330
1100310280
1200300250
1300300230
1400300210
1500300195
1600300188
1650300185

Drawing

]]> SMC 1900ZH http://www.76093.cn/en/?p=967 Wed, 07 Oct 2020 19:48:08 +0000 http://www.76093.cn/?p=967

Features Introduced

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic splicer and pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Partial Introduction

Auto splicer

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1900ZH
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed300 m/min
Max. cutting speed385 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1900(75”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight32000kgs
Full-load power112kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450100210
500110220
600155260
700230320
750290385
800300380
900300345
1000300300
1100290265
1200280235
1300260210
1400260190
1500260175
1600250160
1650250155

Drawing

]]> SMC-1100 http://www.76093.cn/en/?p=7507 Mon, 28 Aug 2023 10:44:29 +0000 http://www.76093.cn/en/?p=7507

Features Introduced

SMC-1100 Cigarette Packing Servo Precision Double-Helix High Speed Sheet Cutter Machine With Photoelectric Tracking is a high-precision and efficient sheet cutter equipment developed by our company.This machine adopts several edge position correction function,embedded double-helix design, non-stop rolling curtain paper delivery device, is easy to operate.The photoelectric tracking cutting accuracy is within ≤± 0.1mm,the edge of cutting paper is smooth without crude or powder.It is the most ideal photoelectric tracking sheet cutting machine in cigarette packing printing industry at present.

Partial Introduction

Slitting system

Photoelectric tracking system

3 times delivery (No impression line)

Non-stop rolling curtain paper delivery device

Main Technical Parameter

ModelSMC-1100
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1450mm
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330m/min
Max. cutting speed540cuts/min
Max. photoelectric tracking cutting meter speed150m/min
Max. photoelectric tracking cutting speed220cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
Max. paper piling height1400mm
The request for air compressor0.8Mpa
Power consumption380V/220V×50Hz
G.W.18000kgs
Full-load Power75kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450195435
500240480
600325540
700330475
800330410
900325365
1000310310
1100300275
1200300250
1300305235
1400315235
1500330220
1600335210

Drawing

]]>
