SMC 1100/1500/1700
Servo Precision Double-Helix High Speed Sheet Cutter Machine
Features Introduced
Based on the technology of SM series Servo precision Double-helix High Speed Sheet Cutter Machine,SMC series equipped with more intelligent function and better technological innovation.
- Auto positioning slitting system.
- Paper pre-press device.
- 3 times delivery device(no impression line).
- Collecting board pneumatic lifting device.
Partial Introduction
Auto brake
反曲-5-1.jpg)
Auto anti curve
Auto tension control
Auto edge position correction
Auto positioning slitting system
Paper pre-press device
Embedded double helix knife(invention patent)
Reject gate
Anti-static device
3 times delivery(no impression line)
Collecting board pneumatic lifting device
Siemens plc system
Main Technical Parameter
| Model | SMC-1100/1500/1700 |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 80-1000GSM |
| Cutting length range | 450-1650mm |
| The format of slitting | 2 sheet(Optional) |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 330 m/min |
| Max. cutting speed | 540 cuts/min |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1100(45”)mm 1500(59”)mm 1700(67”)mm |
| Max. paper piling height | 1600mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220VⅩ50Hz |
| Gross weight | 21000/23000/26000kgs |
| Full-load power | 75/88/88kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
| 450 | 125 | 275 |
| 500 | 160 | 315 |
| 600 | 210 | 350 |
| 650 | 250 | 380 |
| 700 | 290 | 410 |
| 750 | 330 | 440 |
| 800 | 330 | 410 |
| 900 | 330 | 365 |
| 1000 | 330 | 330 |
| 1100 | 310 | 280 |
| 1200 | 300 | 250 |
| 1300 | 300 | 230 |
| 1400 | 300 | 210 |
| 1500 | 300 | 195 |
| 1600 | 300 | 188 |
| 1650 | 300 | 185 |

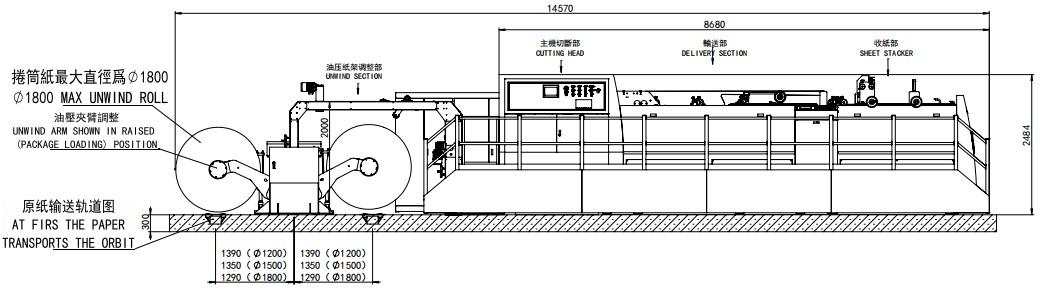

Drawing
